• 64 playback and 64 recording channels — ALP-DANTE-LE's connectivity combined with 64 channels of playback and 64 recording channels to/from a Dante network opens new possibilities to reach beyond usual applications.
• Switching and redundant ports mode — 2× Gbps Ethernet ports that can be used in redundancy mode (Pri, Sec) or in switching mode.
• AES67 & SMPTE ST2110-30 compatible — support for AES67 and SMPTE ST2110-30 AoIP standards.
• Fanless design — reduces consumption and increases the card's durability and sustainability.
• Low profile PCIe form factor — matches all PCs and servers. Additional full-height bracket provided for installation in standard height slots.
• Management via Dante Controller and Dante Domain Manager — managed by Audinate Dante Controller and Dante Domain Manager.
• Drivers for Windows & Linux — operates under Windows or Linux environments with one driver package and multi-application and multi-card API available.

Parameter	Value
Form factor	Low profile PCIe — additional full-height bracket provided
Bus	PCI Express x1 (x2, x4, x8, x16 compatible)
Dimensions (low profile)	L: 168 mm × H: 69 mm × l: 20 mm
Dimensions (standard profile)	L: 168 mm × H: 99 mm × l: 20 mm
Network connectivity	2× Gbps Eth ports — redundancy mode (Pri, Sec) or switching mode
Channels @ 44.1 / 48 kHz	64 × 64
Channels @ 88.2 / 96 kHz	32 × 32
Channels @ 176.4 / 192 kHz	16 × 16
Audio flows	Maximum 32 input and 32 output streams
Buffering	Up to 2000 samples per channel (41.7ms at 48 kHz)
AoIP compatibility	AES67 and SMPTE ST2110-30
Sample format	PCM 16, 24, 32 bits
Management	Audinate Dante Controller and Dante Domain Manager
Firmware update	Via AVS-Monitor (available from the Auvitran website)

• Windows (as of Windows 10 and Server 2019) — ASIO, WASAPI/DirectSound
• Linux — Ubuntu 20.04 kernel 5.15 · Ubuntu 22.04 kernel 6.5 · Debian 11 kernel 5.10 · Debian 12 kernel 6.1 · RHEL 9 kernel 5.14 — ALSA
• Source code available for compiling drivers for other Linux distributions
• Optional service for generating a driver for other Linux distributions
• One driver package — multi-application and multi-card API available to access the parameters
• Digigram ALP-X Manager (Windows) — one unified control panel for the whole ALP-X range, manages up to 8 ALP-X cards, VU-meters, clock frequency
• Digigram ALP-X ASIO Settings (Windows) — select I/Os through ASIO (others can be used through WASAPI)

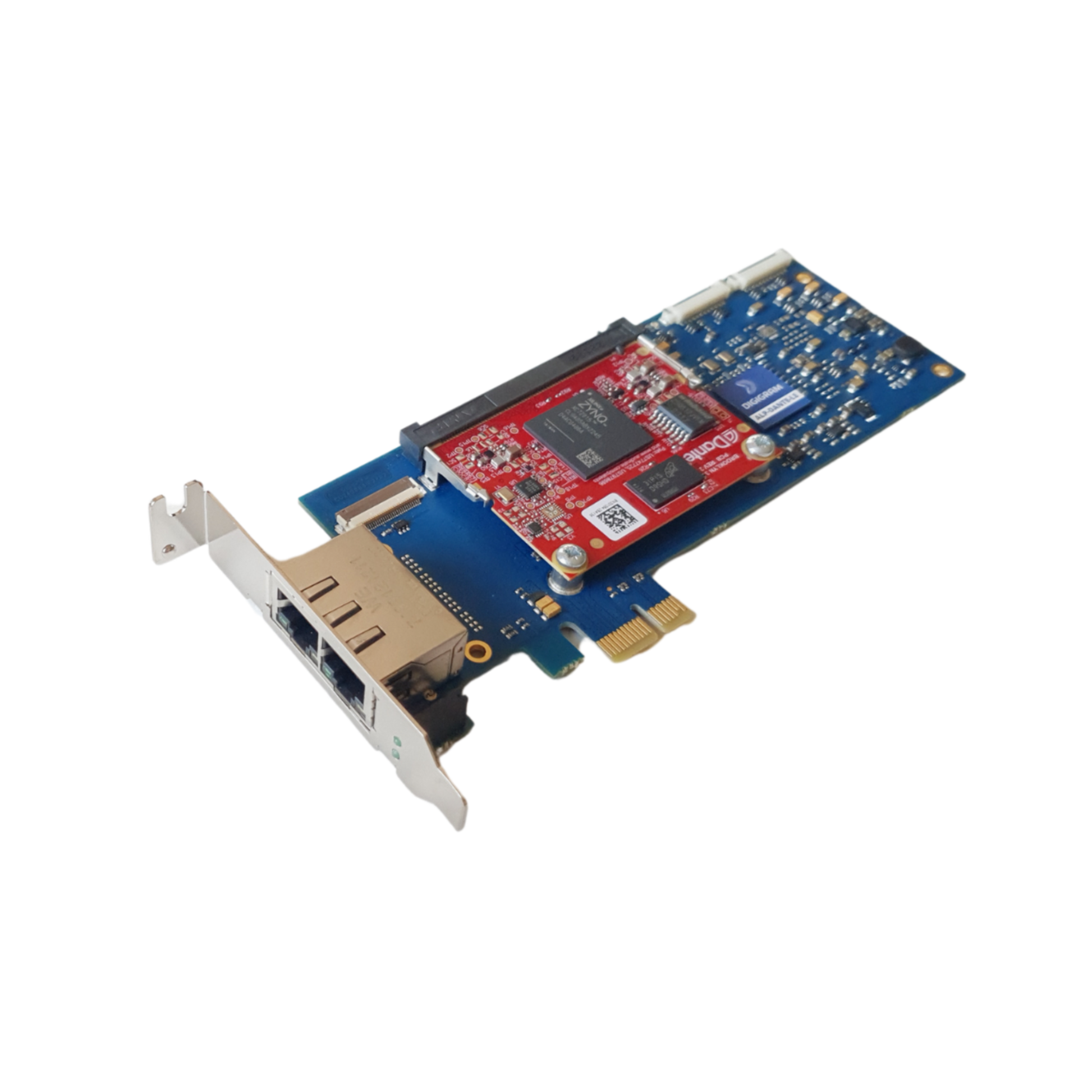

What is the Digigram ALP-DANTE-LE?

A cost-effective Dante PCIe sound card (Light Edition) with 64 playback and 64 recording channels, designed for broadcast, public safety, medical, transportation and industry markets. Built on the same reliable architecture as all ALP-X cards.

How many Dante channels does the ALP-DANTE-LE support?

64×64 channels at 44.1/48 kHz, 32×32 at 88.2/96 kHz, and 16×16 at 176.4/192 kHz. Maximum 32 input and 32 output streams.

What are the two Ethernet port modes?

The 2× Gbps Ethernet ports can be used in redundancy mode (Primary and Secondary) or in switching mode.

Does the ALP-DANTE-LE support AES67?

Yes. The ALP-DANTE-LE supports both AES67 and SMPTE ST2110-30 AoIP standards.

What PCIe slot does the ALP-DANTE-LE require?

It uses a PCIe x1 lane and is compatible with x2, x4, x8 and x16 slots. Low profile form factor with an additional full-height bracket provided for installation in standard height slots.

Does the ALP-DANTE-LE work with Linux?

Yes — with ALSA drivers on Ubuntu 20.04, Ubuntu 22.04, Debian 11, Debian 12 and RHEL 9. Source code is available for compiling drivers for other Linux distributions, and an optional service is available for generating a driver for specific Linux environments.

How is the ALP-DANTE-LE managed?

Via Audinate Dante Controller and Dante Domain Manager. Firmware updates are available via the AVS-Monitor application from the Auvitran website.
