AV-WALL-DT2i-B - Auvitran
AV-WALL-DT2i-B - Auvitran
Impossible de charger la disponibilité du service de retrait
Auvitran · AV-WALL range · Dante wall plate interface
Bluetooth to Dante wall plate — smart, efficient, compact.

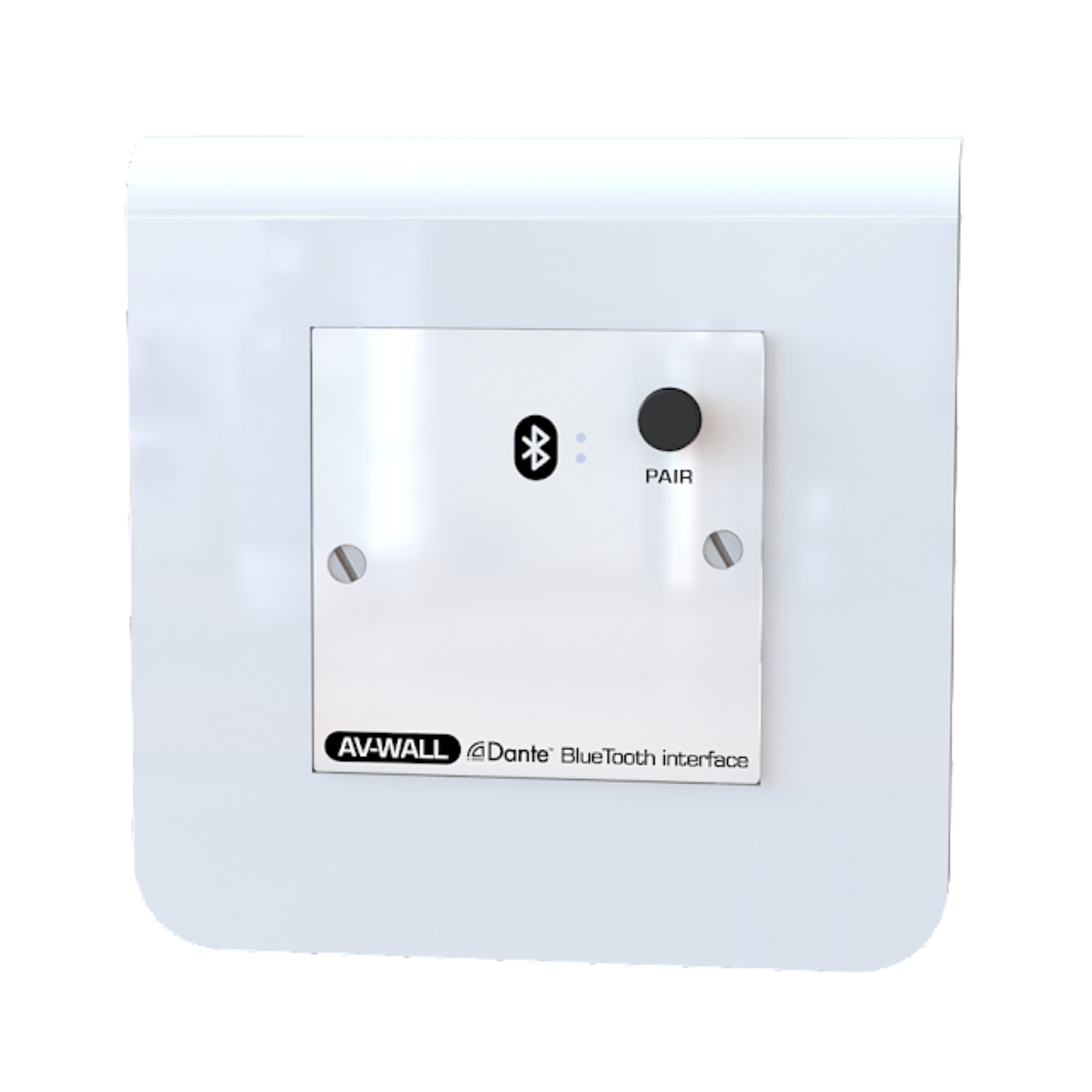

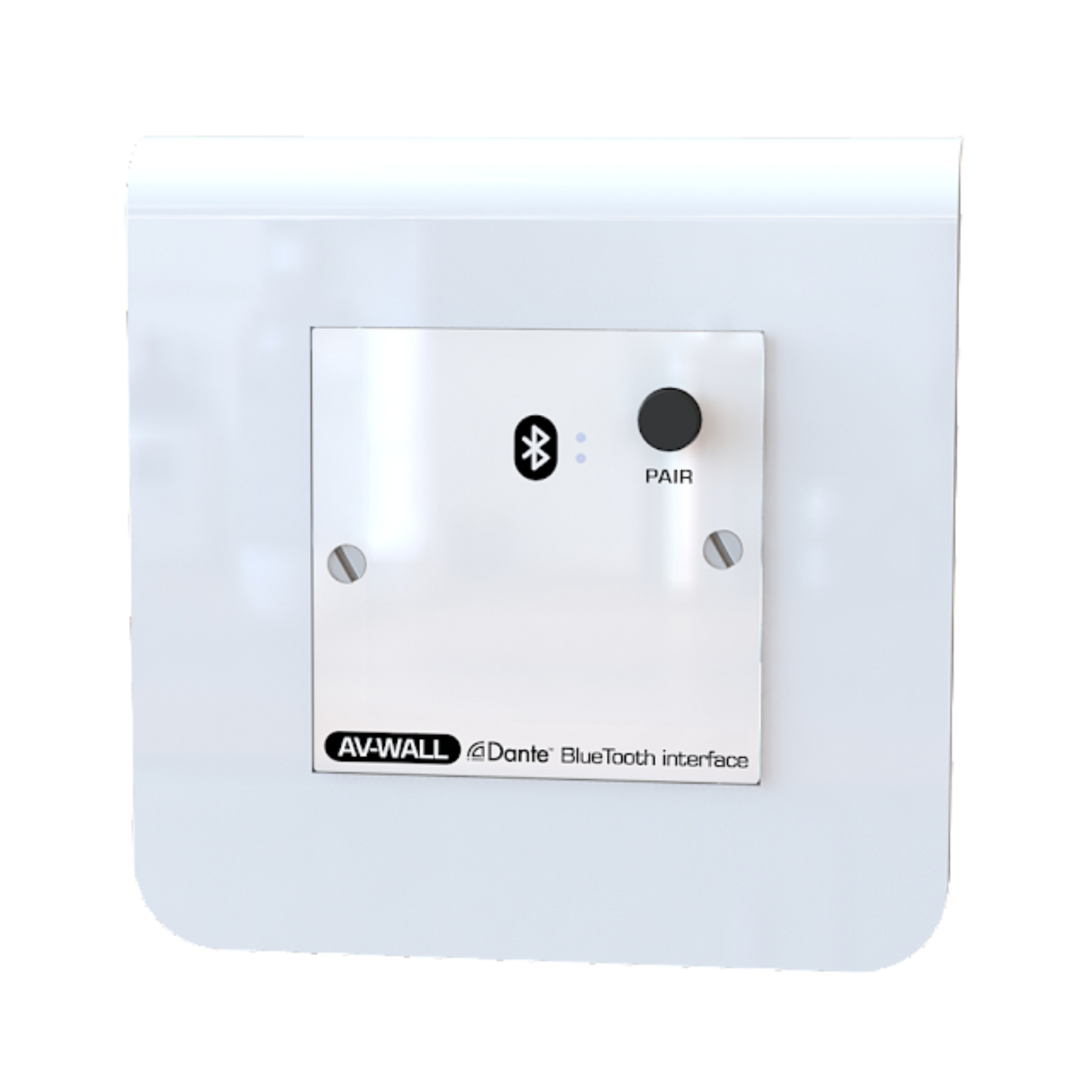

The Auvitran AV-WALL-DT2i-B is a compact and cost-effective Bluetooth-to-Dante audio network interface wall plate. It has an internal stereo Bluetooth input linked to 2 Dante channels, and level adjustment can be carried out remotely by 1 dB step. The AV-WALL-DT2i-B is PoE — therefore you only need one Cat5e/6 cable to connect the power, control, and transmission.
- One cable does everything — PoE 802.3af via RJ45 carries power, control, and audio transmission in a single Cat5e/6 run. Maximum consumption 5.5 W.
- Instant Bluetooth pairing — dedicated pairing button and LED status indicator for fast device connection.
- Precise remote level control — gain adjustment in 1 dB steps, managed remotely via AVS Monitor software.

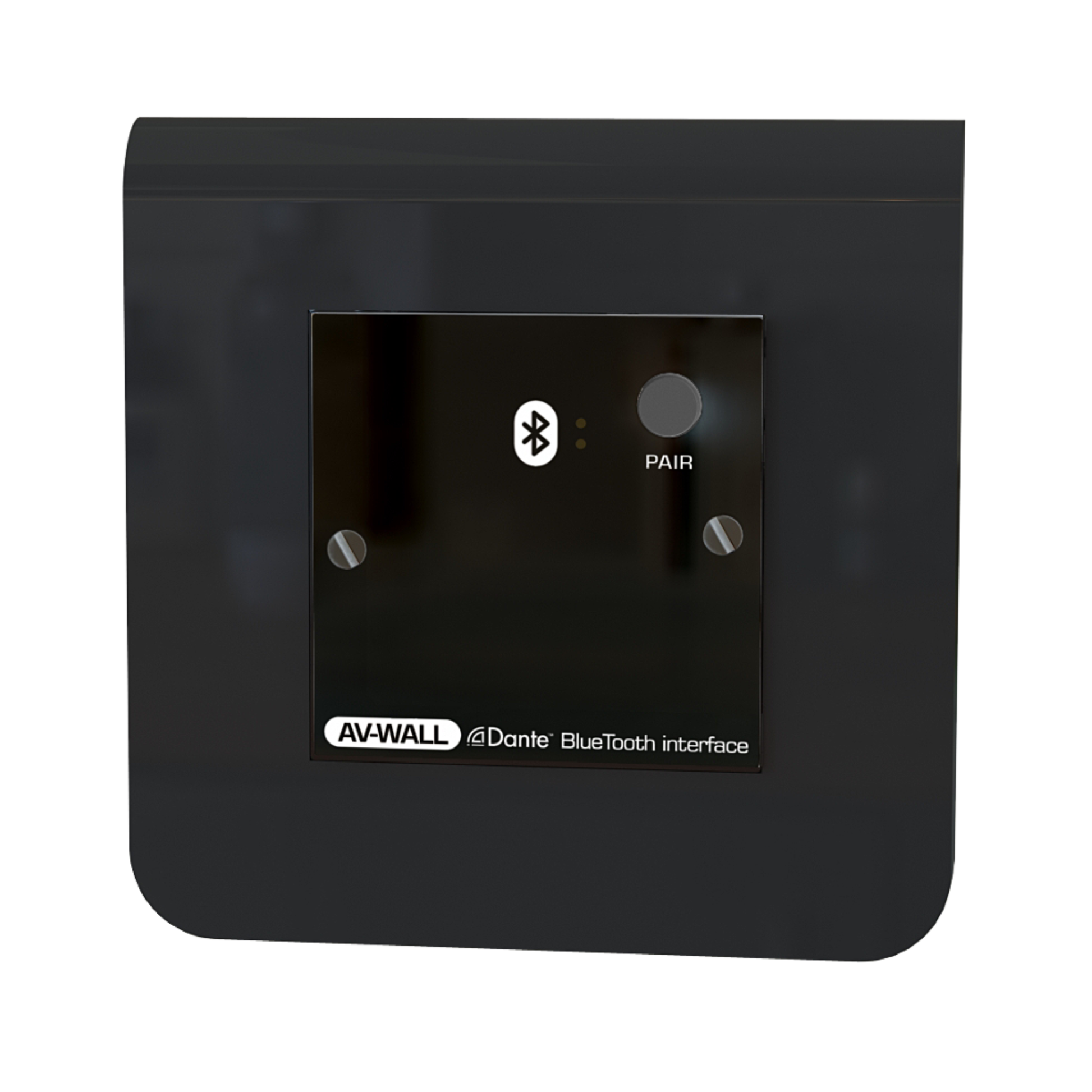

- Discreet Mosaic 45×45 mm design — fits any standard single-gang junction box. Available in black, customizable on request.
- 2 Dante output channels — stereo Bluetooth input routed to 2 independent Dante transmitter channels for flexible network routing.
- Multi-protocol compatible — connects seamlessly Dante with Bluetooth.
- Remote control — managed remotely via AVS Monitor or via Q-SYS.
| Parameter | Value |
|---|---|
| Dante output channels | 2 transmitter channels |
| Bluetooth input | Internal stereo |
| Level adjustment | Remote, 1 dB steps |
| Power supply | PoE 802.3af via RJ45 |
| Maximum consumption | 5.5 W |
| Sampling rate / A/D | 44.1 / 48 / 88.2 / 96 kHz — 24 or 32 bits |
| Dimensions (central part) | 45×45×50 mm |
| Dimensions (depth in wall) | 49×47×46 mm (H×L×W) |
| Form factor | Single-gang junction box |
| Connectivity | RJ45 (Cat5e/6) |
- Available in black — customization and OEM possible on request
- Interchangeable wall plate sizes on request
- Multi-protocol compatible — connects seamlessly Dante with Bluetooth
- Software: AVS Monitor or via Q-SYS
What is the Auvitran AV-WALL-DT2i-B?
A compact and cost-effective Bluetooth-to-Dante audio network interface wall plate with an internal stereo Bluetooth input linked to 2 Dante channels.
Does it need a separate power supply?
No. PoE powered (802.3af) — a single Cat5e/6 cable through the RJ45 connector handles power, control, and audio. Maximum consumption is 5.5 W.
How many Dante channels does it provide?
2 Dante transmitter channels, fed by the internal stereo Bluetooth input.
Can the audio level be adjusted remotely?
Yes. Level adjustment can be carried out remotely in 1 dB steps via AVS Monitor software.
What wall box does it fit?
A standard single-gang junction box. The central part measures 45×45×50 mm. Wall plate size may vary by region.
Is it available in different colors?
Available in black. Customization and OEM options are possible on request, as are interchangeable wall plate sizes.
What protocols does it support?
The AV-WALL-DT2i-B connects seamlessly with Dante, Bluetooth, and Q-SYS.
Part of the AV-WALL range by Auvitran — ultra compact Dante interfaces for wall mounting. Full datasheet and software downloads available at auvitran.com.
