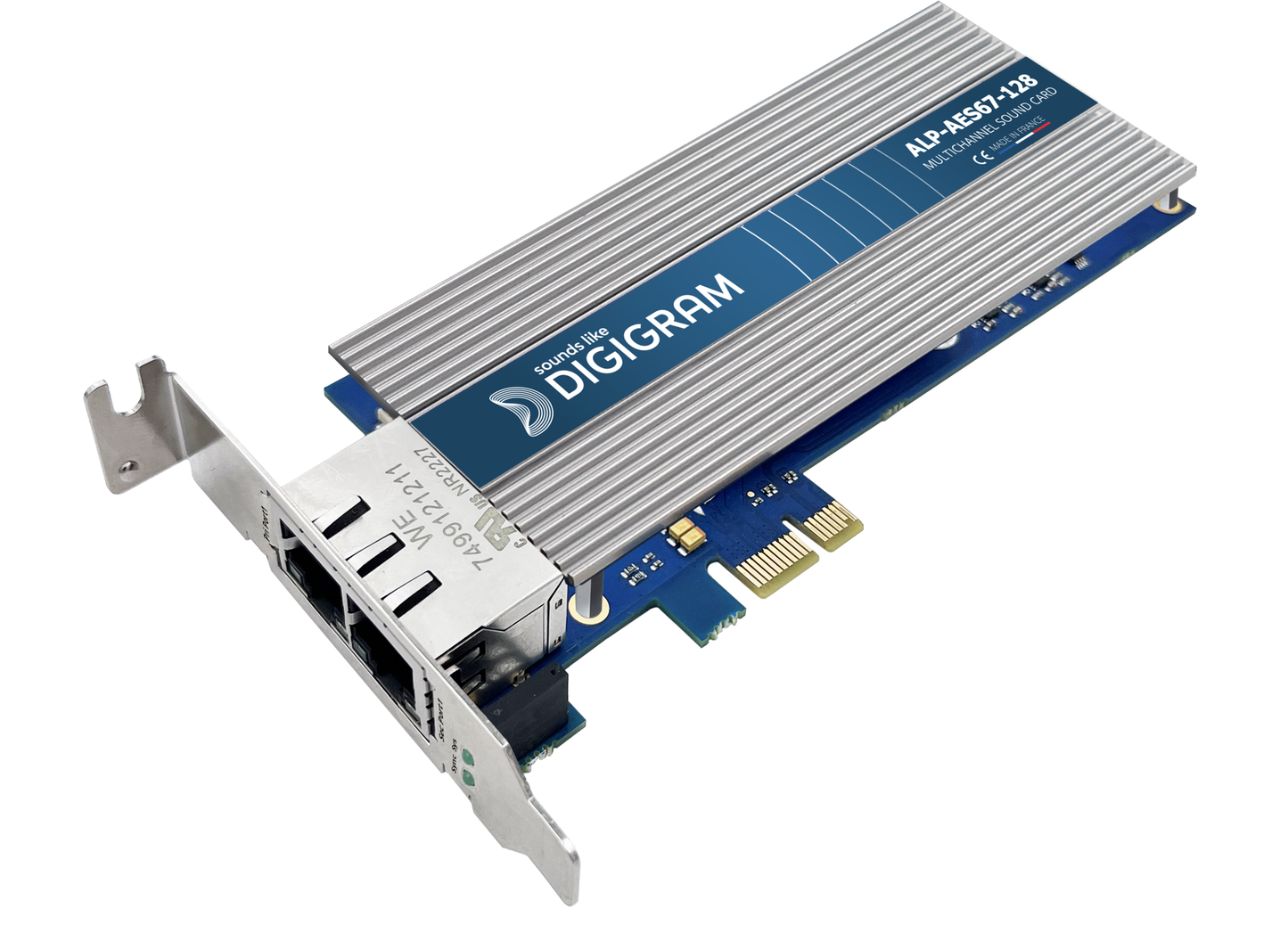

ALP-AES67-128

Digigram

Key Features:

Drivers for Windows and Linux*

up to 128 playback channels
up to 128 recording channels

Switching ports mode
Redundant ports mode

One size fits all
Low profile PCI Express
Fanless design

Reliable AES67 node
Trustworthy protocol, regardless of PC performances

Ensure interoperability
Compliant with AES67, RAVENNA, SMPTE ST2110-30 / ST2022-7

Flexible PTP clocking
PTP slave, PTP master, PTP Grand Master

Dimensions of 3 possible formats

1) Low Profile
2 Eth ports
L: 168 mm x H: 69 mm x l: 20 mm
L: 6.6 inch; H: 2.7 inch; l: 0.8 inch

2) Low Profile
4 Eth ports
L: 168 mm x H: 69 mm x l: 40 mm
L: 6.6 inch; H: 2.7 inch; l: 1.6 inch

3) Full-height Profile
4 Eth ports
L: 168 mm x H: 99 mm x l: 20 mm
L: 6.6 inch; H: 3.9 inch; l: 0.8 inch

Supported OS:
Windows (as of Windows 10 20H2, Server 2019)
Linux: UBUNTU as of ver. 20, DEBIAN as of ver.10,
RHEL as of ver.9

Drivers:
Windows: Asio, Wasapi / DirectSound
Linux: Alsa
One Driver Package
Multi-application and multi-card and API available to access the parameters
