• One cable does everything — PoE 802.3af via RJ45 carries power, control, and audio transmission in a single Cat5e/6 run. Maximum consumption 5.5 W.
• 4 Dante channel transmitters — 4x internal input mixers (1, 2, L, R) routing up to 4 lines of audio to 4 independent Dante channels.
• Professional Mic/Line inputs — 2x female XLR inputs with +48V phantom power per channel for microphone or line-level sources.
• Flexible input options — 2 XLR for line inputs 1-2, a stereo 3.5mm minijack for line inputs 3-4, plus an optional stereo Bluetooth extension.
• Remote and local control — Mic pre-amplification adjustable by 1 dB step, either remotely via AVS Monitor or locally via the rotary push button.
• Discreet Mosaic 45×45 mm design — fits any standard single-gang junction box. Available in black, customizable on request.

Parameter	Value
Dante output channels	4 transmitter channels
Internal mixers	4x (inputs 1, 2, L, R)
Inputs	2x XLR (line 1-2) + stereo 3.5mm minijack (line 3-4)
Optional input	Stereo Bluetooth (via AV-WALL-BT-EXT)
Phantom power	+48V controlled per channel
Local control	Rotary push button
Level adjustment	Remote or local, 1 dB steps
Power supply	PoE 802.3af via RJ45
Maximum consumption	5.5 W
Sampling rate / A/D	44.1 / 48 / 88.2 / 96 kHz — 24 or 32 bits
Dimensions (central part)	45×45×50 mm
Dimensions (depth in wall)	49×47×46 mm (H×L×W)
Form factor	Single-gang junction box
Connectivity	RJ45 (Cat5e/6)

Audio performance	XLR (balanced)	Mini-jack (unbalanced)
Input sensitivity	+24dBu to -40dBu	+12dBu to -28dBu
Input impedance	3.5 kΩ	10 kΩ
E.I.N.	-111dBu @R=150Ω, G=+64dB	-97dBu @R=20Ω, G=+40dB
Dynamic range	>101dB A-weighted	>100dB A-weighted
THD+N @1kHz, G=0dB	<-91dB (0.0028%)	<-89dB (0.0035%)
Freq. response @G=0	20Hz-20kHz (+0/-1.2dB)	20Hz-20kHz (+0/-0.8dB)

• Available in black — customization and OEM possible on request
• Bluetooth extension available (AV-WALL-BT-EXT)
• Interchangeable wall plate sizes on request
• Multi-protocol compatible — connects seamlessly Dante with Mic/Line sources
• Software: AVS Monitor or via Q-SYS

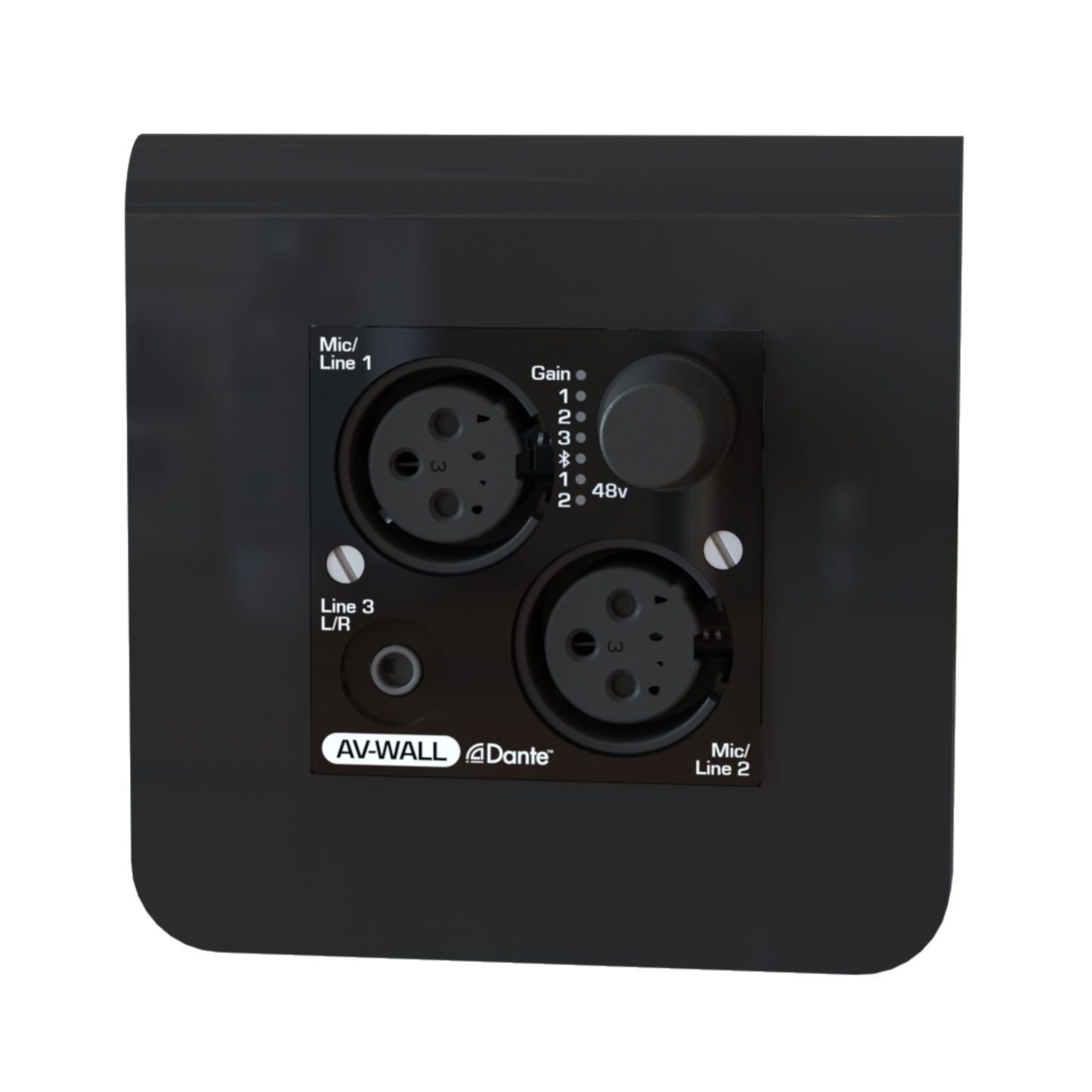

What is the Auvitran AV-WALL-DT4i?

A compact and cost-effective Dante Mic/Line audio network interface wall plate with an internal mixer feature that allows up to 4 lines of audio mixing to 4 Dante channels.

What is the difference between the AV-WALL-DT4i and the AV-WALL-DT4i-LE?

The AV-WALL-DT4i-LE has the same technical features as the DT4i but without the rotary push button for local access and control.

Does the AV-WALL-DT4i need a separate power supply?

No. It is PoE powered (802.3af compliant) — a single Cat5e/6 cable through the RJ45 connector handles power, control, and audio. Maximum consumption is 5.5 W.

How many Dante channels does the AV-WALL-DT4i provide?

4 Dante transmitter channels, fed by the 4x internal input mixers (inputs 1, 2, L, R).

Can I connect a Bluetooth source to the AV-WALL-DT4i?

Yes, via the optional AV-WALL-BT-EXT Bluetooth extension, which allows the DT4i to be operated with Bluetooth audio input.

Can the audio level be adjusted remotely?

Yes. Mic pre-amplification adjustments can be carried out either remotely via AVS Monitor or locally via the rotary push button, in 1 dB steps.

Does the AV-WALL-DT4i support phantom power?

Yes. +48V phantom power is available, controlled per channel, for Mic/Line inputs on XLR.

What wall box does the AV-WALL-DT4i fit?

It fits a standard single-gang junction box. The central part measures 45×45×50 mm. Wall plate size may vary depending on the region.
