• One cable does everything — PoE 802.3af via RJ45 carries power, control, and audio transmission in a single CAT-5e/6 run.
• 64dB of true preamp gains — 2x Microphone/Line inputs with gains between +24dB to -40dB, controllable per step of 0.5dB via network or locally via rotative push button.
• +48V phantom power — 2x +48V phantom power, remotely or locally controllable for the Mic/Line inputs.
• Bluetooth stereo input — stereo Bluetooth input with a use range of 10-15m (indoor) and 25-30m (open field).
• 4x Dante channel transmitters — internal mixers allow sending 4 individual mixing of the 4 inputs (1, 2, L and R) to the 4 Dante channels.
• Local and remote control — embedded rotative push button gives local control of any individual gains and to the 48V phantom power if remotely activated.

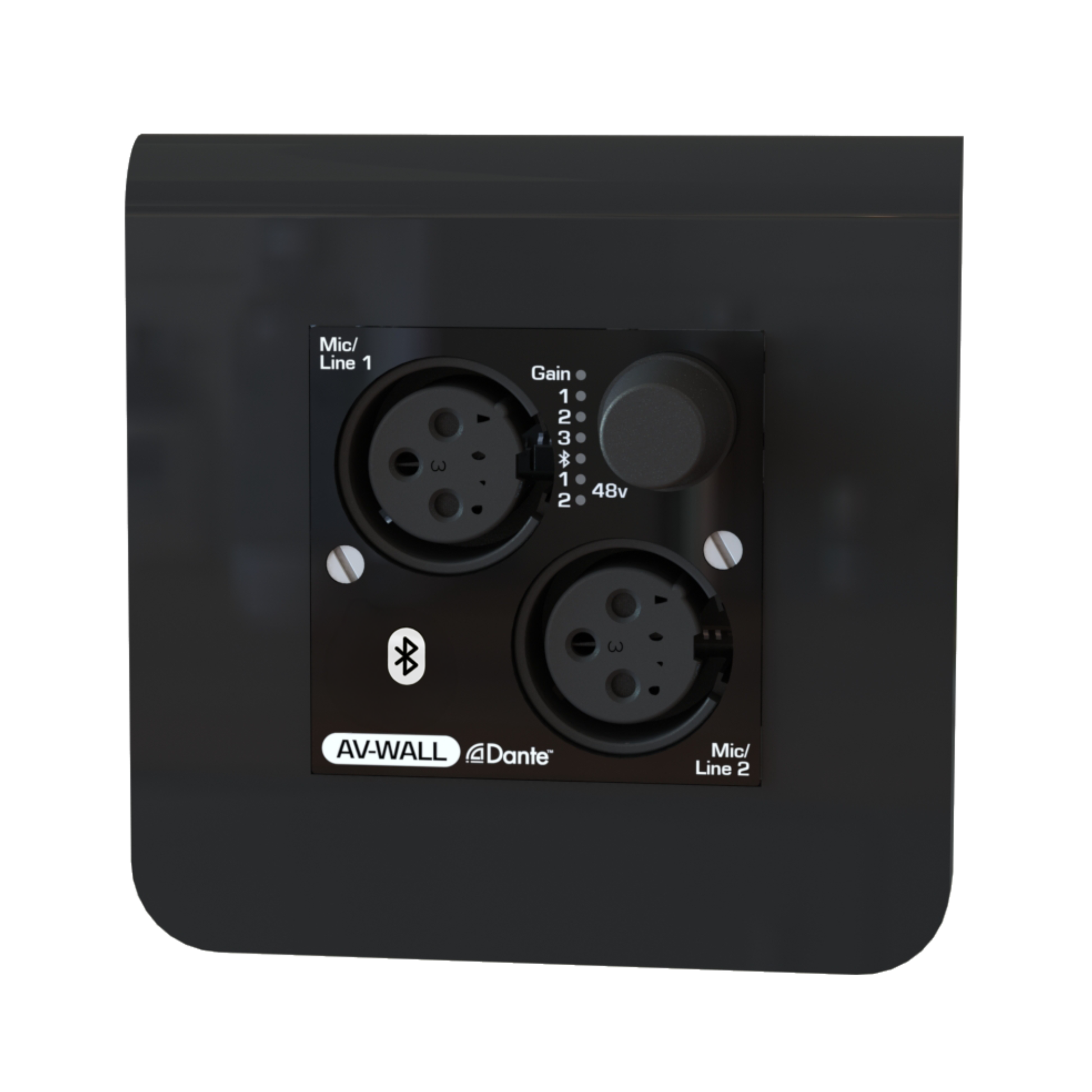

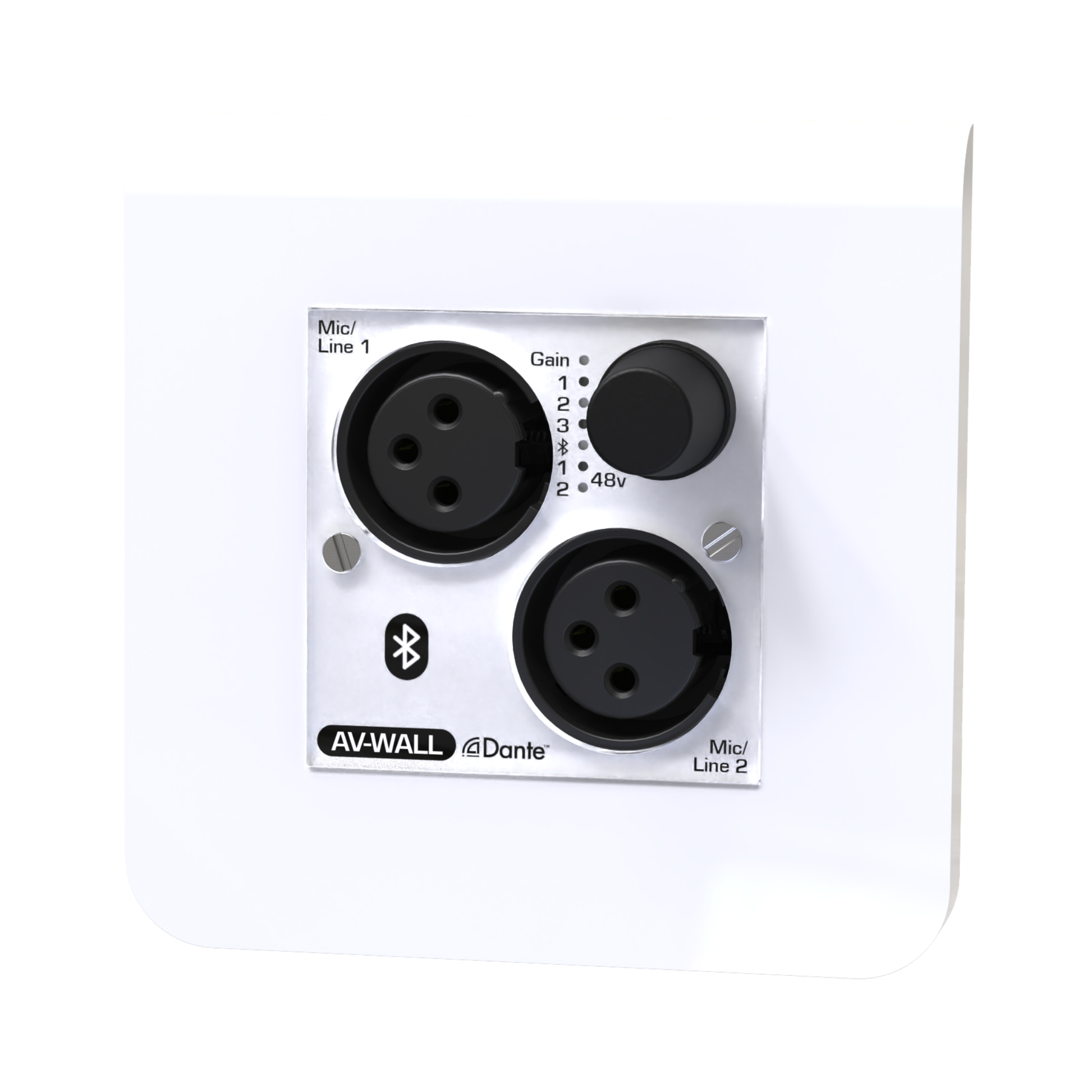

• Discreet 45×45 mm design — fits a single-gang junction box in European and Asian standards. Available in black, white or customization on request.

Parameter	Value
Dante channel transmitters	4x — 44.1 / 48 / 88.2 / 96 kHz
Mic/Line inputs	2x XLR female (inputs 1/2)
Bluetooth input	Stereo 5.2 Bluetooth — 10-15m indoor, 25-30m open field
Internal mixers	4x — inputs 1, 2, L, R to 4 Dante channels
Preamp gain range	+24dB to -40dB — 0.5dB steps
Phantom power	2x +48V — remotely or locally controllable
Local control	Embedded rotative push button
Level adjustment	Remote or local, 0.5dB steps
Power supply	PoE 802.3af compliant via RJ45
Dimensions (main box)	45×45×50 mm
Form factor	Single-gang junction box
Connectivity	CAT-5e/6
Wall plate versions	European / US version available

Bluetooth audio profiles	Supported
A2DP — Advanced Audio Distribution Profile (Audio HQ Streaming)	Yes
AVRCP — Audio/Video Remote Control Profile (play/pause/volume)	Yes
HSP/HFP	No
LE Audio	No

• Available in black, white or customization upon request
• Available in European or US version
• Multi-protocol compatible — connects seamlessly Dante with Mic/Line and Bluetooth sources
• Software: AVS Monitor (remote management) or via Q-SYS compatible plugin

What is the Auvitran AV-WALL-DT4i-B?

A cost-effective Dante Mic/Line interface wall box with 64dB of true preamp gains on 2 professional XLR Mic inputs and one 5.2 Bluetooth stereo channel. PoE powered via a single CAT-5e/6 cable. Designed to fit a single-gang junction box of only 45×45mm.

What is the Bluetooth range of the AV-WALL-DT4i-B?

The stereo Bluetooth input has a use range of 10-15m indoors and 25-30m in open field.

Which Bluetooth audio profiles does the AV-WALL-DT4i-B support?

It supports A2DP (Advanced Audio Distribution Profile for audio HQ streaming) and AVRCP (Audio/Video Remote Control Profile to send play/pause/volume from AV-Wall-DT4i/AVS-Monitor to cellphone). HSP/HFP and LE Audio are not supported.

Can I control the gain locally without a computer?

Yes. The embedded rotative push button gives local control of any individual gains and to the 48V phantom power if remotely activated — no external computer needed.

Does the AV-WALL-DT4i-B support phantom power?

Yes. 2x +48V phantom power is available, remotely or locally controllable for the Mic/Line inputs.

How many Dante channels does the AV-WALL-DT4i-B provide?

4x Dante channel transmitters. Internal mixers allow sending 4 individual mixing of the 4 inputs (1, 2, L and R) to the 4 Dante channels.

What applications is the AV-WALL-DT4i-B designed for?

Any wall mounted Mic and Line to Dante network installation in theatres, convention centres, hotel ballrooms, corporate meeting rooms, restaurants, bars and sports facilities.

Does the AV-WALL-DT4i-B need a separate power supply?

No. It is PoE 802.3af compliant and works with any compliant PoE network switch — a single CAT-5e/6 cable provides power, control and audio data connectivity.

What wall box does the AV-WALL-DT4i-B fit?

It fits a single-gang junction box of only 45×45mm, compatible with most European and Asian standards. Available in European or US version.
