Auvitran · AV-WALL range · Dante wall plate interface
Dante to XLR & Bluetooth output wall plate — compact, PoE, OLED display.

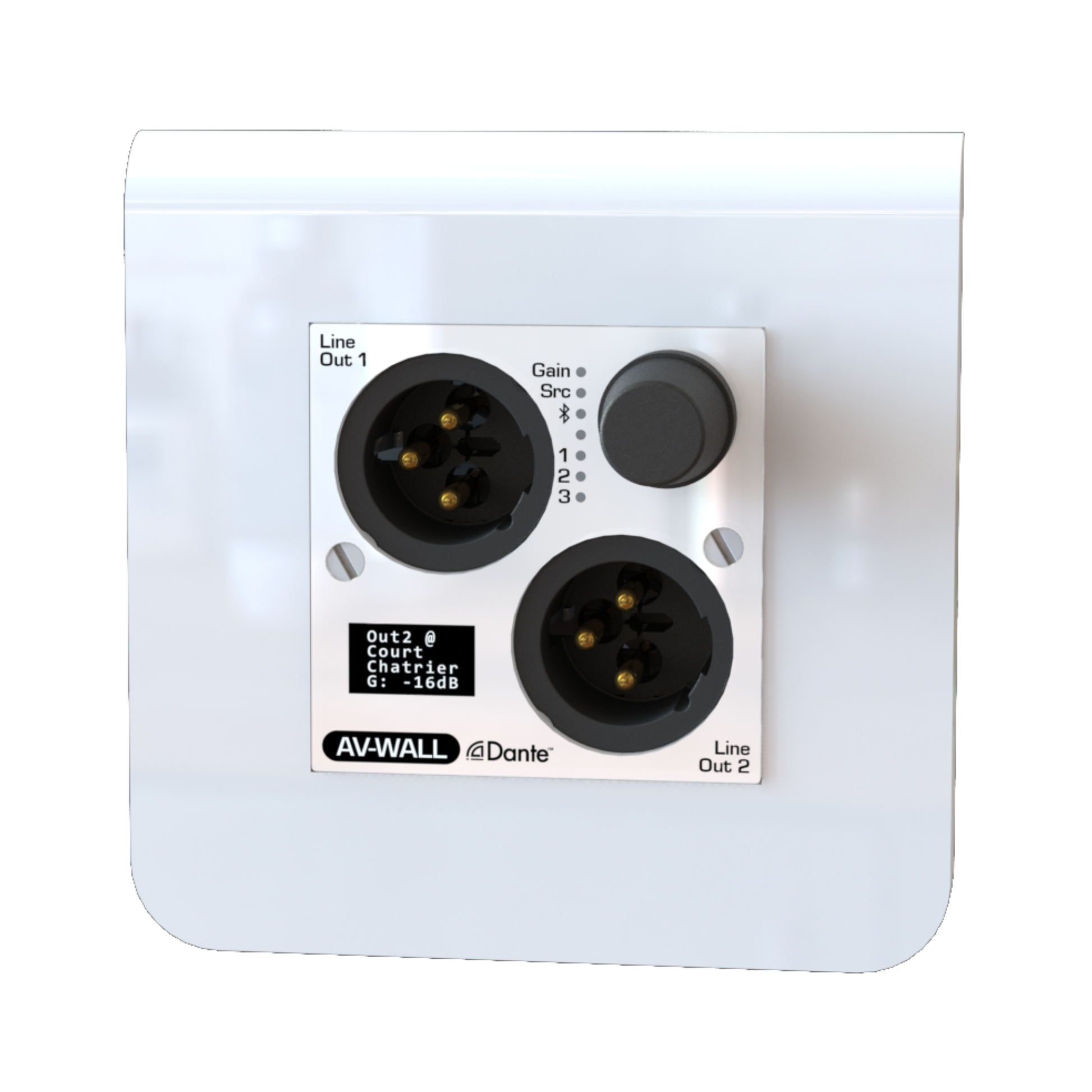

The Auvitran AV-WALL-DT4o-B is a Dante super compact interface on PoE for wall mount to 2x XLR line out and stereo Bluetooth output with a rotative push button plus OLED screen display. A single-gang wall mounted Dante and Bluetooth output audio interface, its compact design provides a flexible and easy to use installation solution. It is PoE enabled so you only require one Cat5e/6 cable to connect the power, control and transmission. (Minimum order of 50)
- One cable does everything — PoE 802.3af via RJ45 carries power, control, and audio transmission in a single Cat5e/6 run. Maximum consumption 5.5 W.
- Simple Bluetooth device pairing — easy selection of pre-set Bluetooth channels via rotative push button.
- OLED screen for direct Dante source selection — no external software required to create a patch.
- Remote or local controlling options — gain controlled locally via rotative push button or remotely via AVS Monitor and Dante Controller software.
- 2 male XLR analog line outputs — professional balanced line outputs for direct connection to amplifiers or speakers.
- Discreet Mosaic 45×45 mm design — fits any standard single-gang junction box. Available in black, customizable on request.
| Parameter | Value |
|---|---|
| Outputs | 2x XLR line outputs 1-2 + stereo Bluetooth |
| Display | OLED screen |
| Local control | Rotative push button |
| Level adjustment | Remote or local |
| Power supply | PoE 802.3af via RJ45 |
| Maximum consumption | 5.5 W |
| Sampling rate / A/D | 44.1 / 48 / 88.2 / 96 kHz — 24 or 32 bits |
| Dimensions (central part) | 45×45×50 mm |
| Dimensions (depth in wall) | 49×47×46 mm (H×L×W) |
| Form factor | Single-gang junction box |
| Connectivity | RJ45 (Cat5e/6) |
| Audio performance | XLR (balanced) |
|---|---|
| Output max level | +24dBu |
| Output impedance | <100 kΩ |
| Dynamic range @+24dBu | >106dB A-weighted |
| THD+N @1kHz, G=0dB | <-92dB (0.0025%) |
| Freq. response @G=0 | 20Hz-20kHz (+0/-2.5dB) |

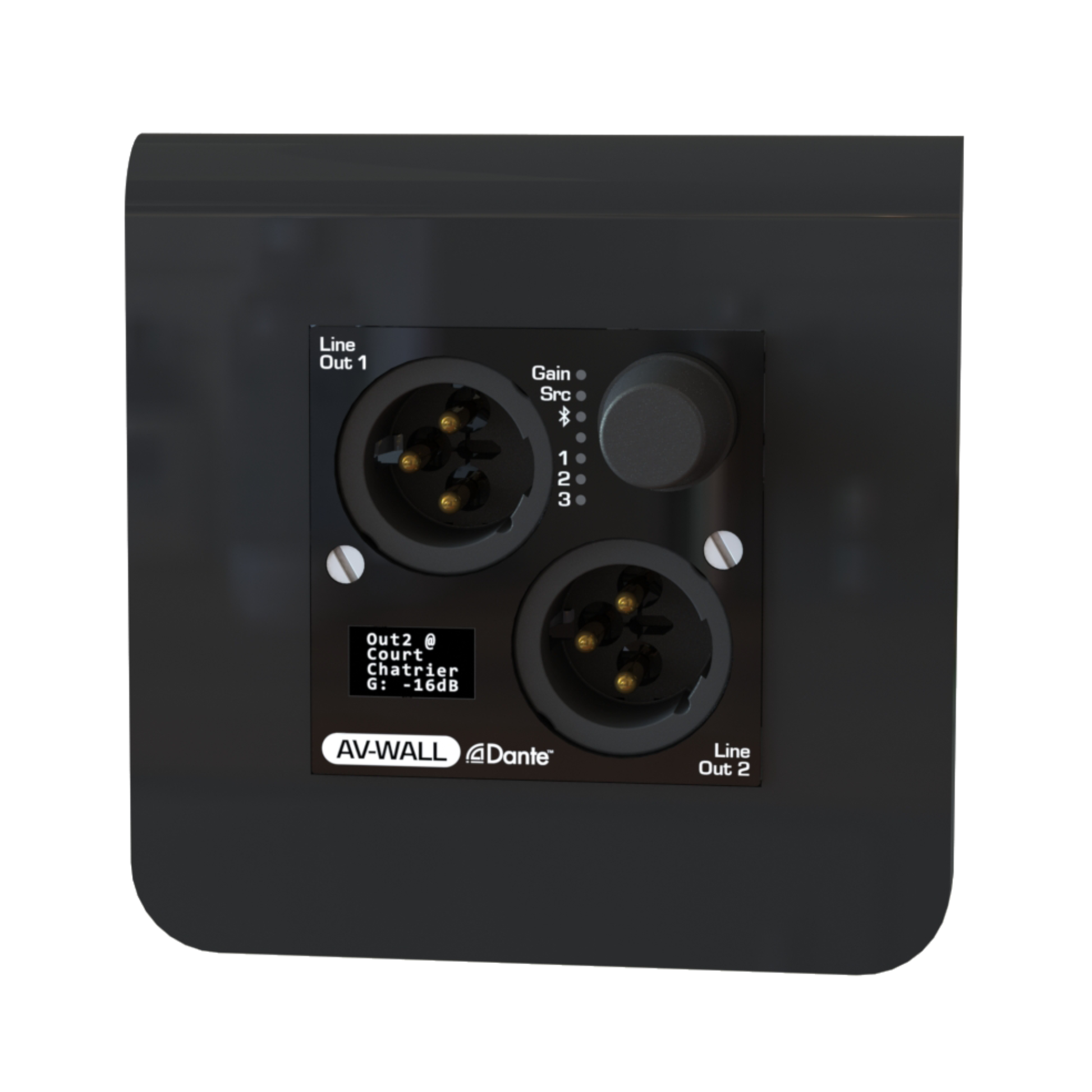

- Available in black — customization and OEM possible on request
- Interchangeable wall plate type on request
- Multi-protocol compatible — connects seamlessly Dante with Bluetooth
- Software: AVS Monitor or via Q-SYS
What is the Auvitran AV-WALL-DT4o-B?
A single-gang wall mounted Dante and Bluetooth output audio interface with 2x XLR line outputs and stereo Bluetooth output, a rotative push button and OLED screen display. PoE powered via a single Cat5e/6 cable.
What is the difference between the AV-WALL-DT4o-B and the AV-WALL-DT4o-LE?
The AV-WALL-DT4o-LE has a stereo minijack output to replace the Bluetooth output, and does not have the OLED screen or rotative push button.
Does the AV-WALL-DT4o-B need a separate power supply?
No. It is PoE enabled — a single Cat5e/6 cable through the RJ45 connector handles power, control, and audio. Maximum consumption is 5.5 W.
How does Bluetooth pairing work on the AV-WALL-DT4o-B?
The AV-WALL-DT4o-B has a very simple pairing process accessed through the rotative push button, which allows the user to select and view paired devices on the OLED screen.
Do I need software to select a Dante source?
No. The OLED screen allows direct selection of Dante sources — no external software is required to create a patch.
Can the gain be controlled remotely?
Yes. Gain can be controlled locally via the rotative push button or remotely via AVS Monitor and Dante Controller software.
What wall box does the AV-WALL-DT4o-B fit?
It fits a standard single-gang junction box. The central part measures 45×45×50 mm. Wall plate size may vary depending on the region.
Part of the AV-WALL range by Auvitran — ultra compact Dante interfaces for wall mounting. Full datasheet and software downloads available at auvitran.com.
