Auvitran · AV-WALL range · Dante wall plate interface
Dante to XLR & minijack output wall plate — compact, PoE, remote control.

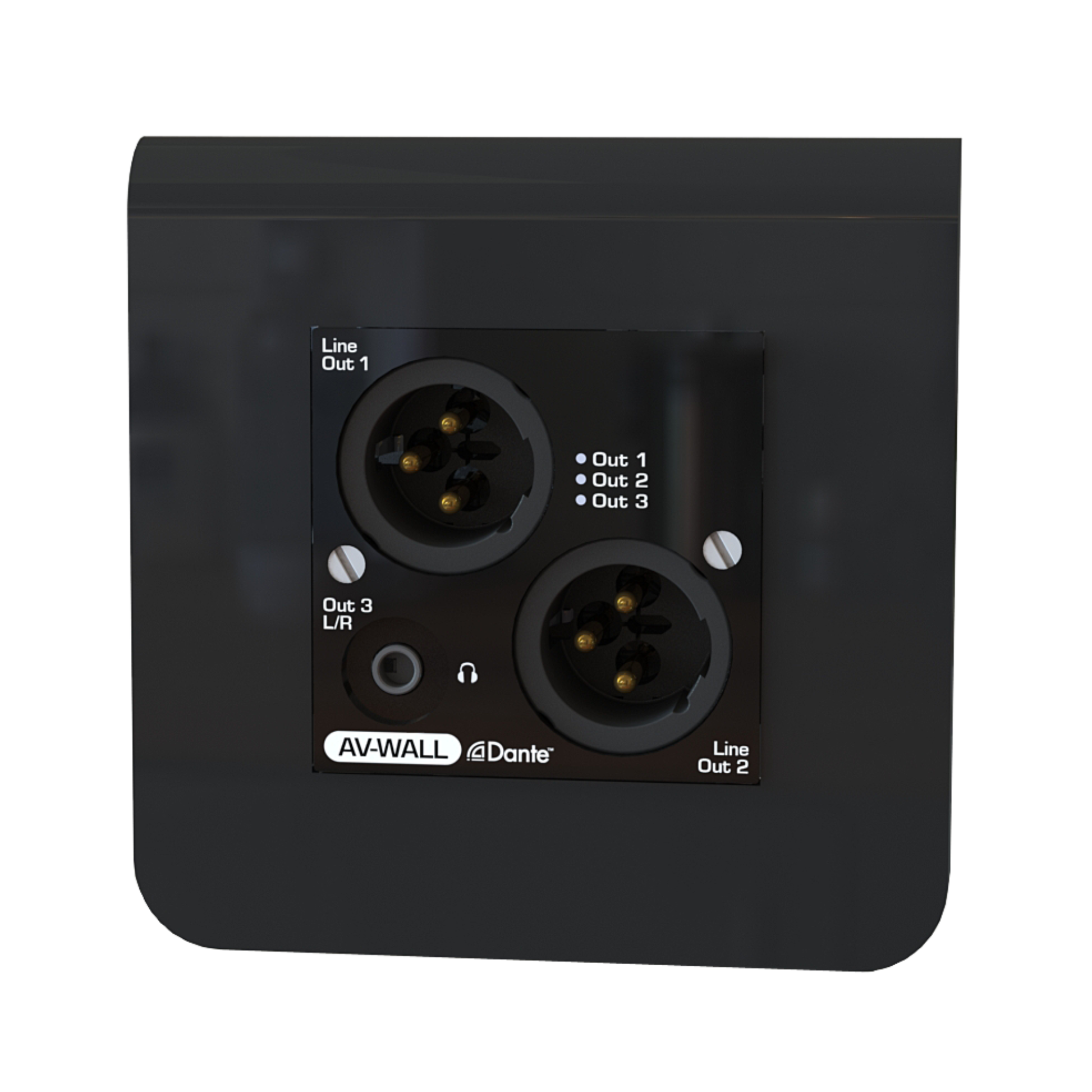

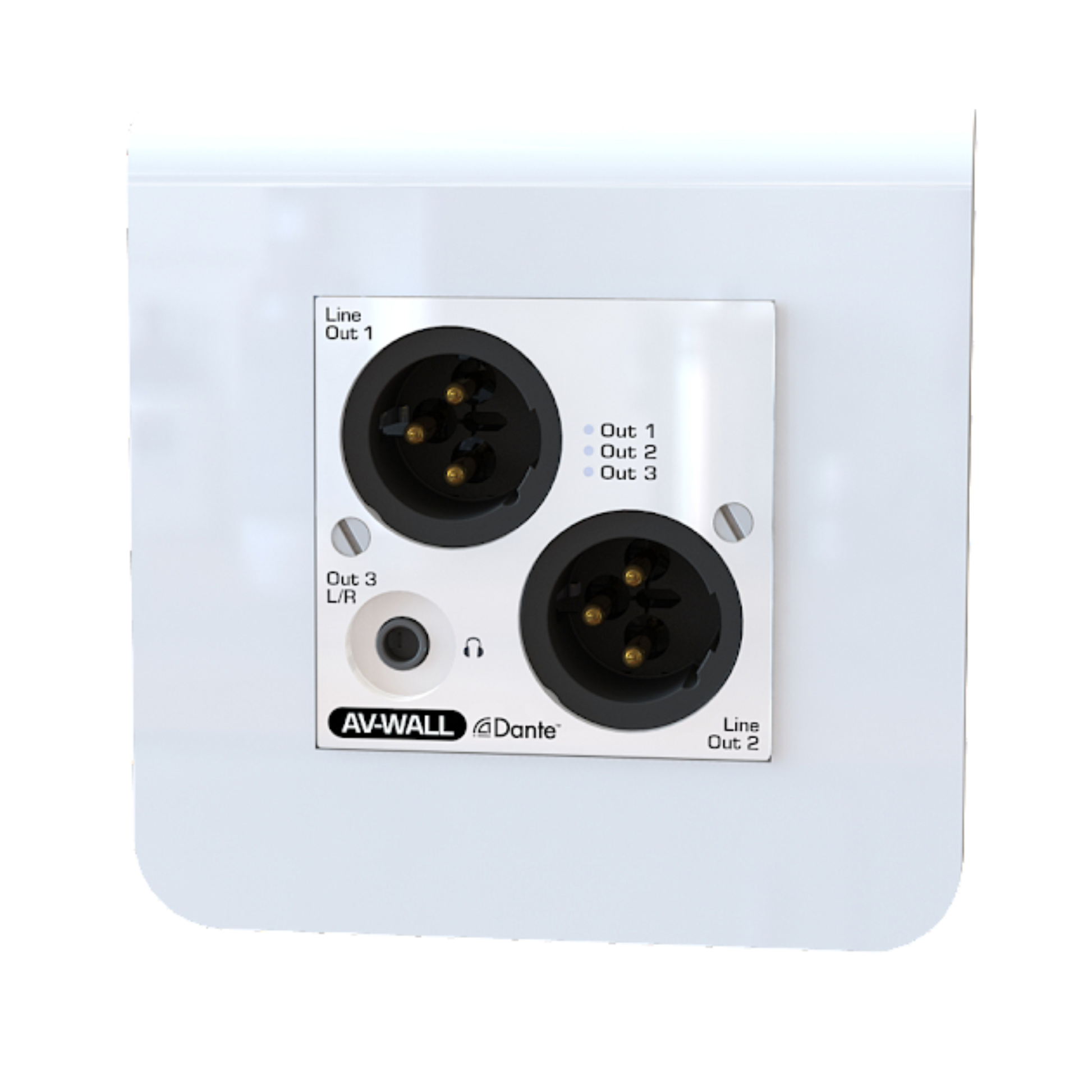

The Auvitran AV-WALL-DT4o-LE is a Dante super compact interface on PoE for wall mount to 2x XLR line out and 3.5mm mini Jack stereo output. It has a stereo minijack output to replace the Bluetooth output, without OLED screen or rotation button. With a dedicated software and control page (AVS Monitor) monitoring, controlling and setting parameters is easily accessible and has different levels of functionality (standard and advanced).
- One cable does everything — PoE 802.3af via RJ45 carries power, control, and audio transmission in a single Cat5e/6 run. Maximum consumption 5.5 W.
- 2x XLR line outputs — professional balanced line outputs for direct connection to amplifiers or speakers.
- Stereo 3.5mm minijack output — replaces the Bluetooth output for flexible analog connectivity.
- Remote control via AVS Monitor — monitoring, controlling and setting parameters easily accessible with standard and advanced functionality levels.
- Discreet Mosaic 45×45 mm design — fits any standard single-gang junction box. Available in black, customizable on request.
| Parameter | Value |
|---|---|
| Outputs | 2x XLR line outputs 1-2 + stereo 3.5mm minijack |
| Level adjustment | Remote only via AVS Monitor |
| Power supply | PoE 802.3af via RJ45 |
| Maximum consumption | 5.5 W |
| Sampling rate / A/D | 44.1 / 48 / 88.2 / 96 kHz — 24 or 32 bits |
| Dimensions (central part) | 45×45×50 mm |
| Dimensions (depth in wall) | 49×47×46 mm (H×L×W) |
| Form factor | Single-gang junction box |
| Connectivity | RJ45 (Cat5e/6) |
| Audio performance | XLR (balanced) | Mini-jack (unbalanced) |
|---|---|---|
| Output max level | +24dBu | +18.7dBu |
| Output impedance | <100 kΩ | 16 to 600 Ω |
| Dynamic range | >106dB A-weighted | >104dB A-weighted |
| THD+N @1kHz, G=0dB | <-92dB (0.0025%) | <-91dB (0.0028%) |
| Freq. response @G=0 | 20Hz-20kHz (+0/-2.5dB) | 20Hz-20kHz (+0/2dB) |
| Max power | — | 250mW @0.05% THD+N 1kHz, 32Ω load |
- Available in black — customization and OEM possible on request
- Interchangeable wall plate type on request
- Multi-protocol compatible — connects seamlessly Dante with analog outputs
- Software: AVS Monitor (standard and advanced functionality)
What is the Auvitran AV-WALL-DT4o-LE?
A Dante super compact interface on PoE for wall mount to 2x XLR line out and 3.5mm mini Jack stereo output, without OLED screen or rotation button. PoE powered via a single Cat5e/6 cable.
What is the difference between the AV-WALL-DT4o-B and the AV-WALL-DT4o-LE?
The AV-WALL-DT4o-LE has a stereo minijack output to replace the Bluetooth output of the DT4o-B, and does not have the OLED screen or rotative push button. Control is remote only via AVS Monitor.
Does the AV-WALL-DT4o-LE need a separate power supply?
No. It is PoE enabled — a single Cat5e/6 cable through the RJ45 connector handles power, control, and audio. Maximum consumption is 5.5 W.
How is the AV-WALL-DT4o-LE controlled?
Remotely only, via AVS Monitor. There is no OLED screen or rotative push button for local control. AVS Monitor provides standard and advanced levels of functionality for monitoring, controlling and setting parameters.
What outputs does the AV-WALL-DT4o-LE have?
2x XLR balanced line outputs (1-2) and a stereo 3.5mm minijack output for line outputs 3-4.
What wall box does the AV-WALL-DT4o-LE fit?
It fits a standard single-gang junction box. The central part measures 45×45×50 mm. Wall plate size may vary depending on the region.
Part of the AV-WALL range by Auvitran — ultra compact Dante interfaces for wall mounting. Full datasheet and software downloads available at auvitran.com.
