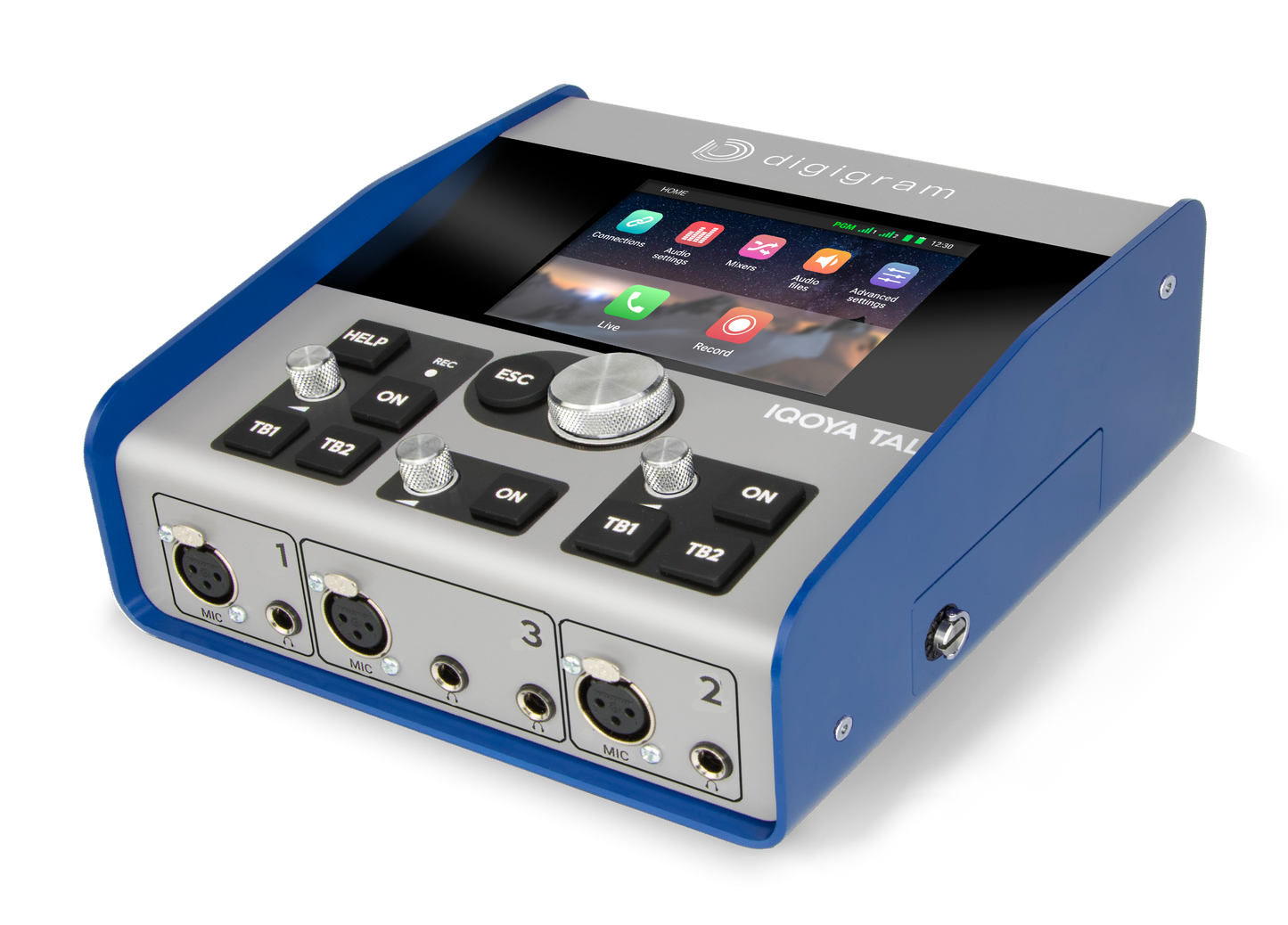

IQOYA TALK

Key Features:
Dual built-in 4G / LTE module
Smartphone charging capability
2 independent SIP connections TB & PGM
Simple smartphone ergonomy with 5" LCD touchscreen or central rotary knob
3mm protective housing
3 mic-line inputs 4 headphones outputs
Fast access to each headphone mixer
Up to 2 independent and hotswappable Li-ion batteries
High quality audio recorder. 64 Gbytes of internal memory
11 inputs / 10 outputs mixer
Dual Gigabit Ethernet ports
Built-in dual-band Wi & bluetooth module

Audio:

3 Mic inputs, Microphone / Line level adjustment 48 V phantom power
4 headphone outputs, individual mix bus on each output
1 analog or AES3 stereo aux input: analog on XLRs or minijack, left XLR also serves for the AES3 input.

1 analog or AES3 stereo output: left XLR serves for the analog left channel or for the AES3 output.
Two independent connections for Program (mono or stereo) and for Talkback (2 channels) 11 input / 10 output embedded mixer

CONNECTIVITY:

2 Gigabit Ethernet ports
2 integrated 4G / LTE modules, approved in Europe, USA and Asia
1 integrated dual-band wifi
2 USB A ports (can be used for powering a smartphone)
1 USB C port for files transfer between a PC and the internal storage.

STREAMING AND AUDIO FORMATS

Compliant with ACIP (EBU Tech 3326 and Tech 3368)
Dual streaming
Configurable FEC

Encoding/decoding formats: PCM, (12, 16, 20 or 24 bits), G711/G722, MPEG-1/2 Layer II and layer 3, MPEG-4 AAC-LC, AACLD/ELD, HE-AACv1/v2, Opus w/ or w/o in-band FEC.
Recording format: PCM 16 bits

GENERAL

Lockable external power supply 12-24 VDC
LxWxH: 200 x 216 x 90 mm (7 x 8 x 3 ) 7/8 1/2 35/64
Weight : 2,3 Kg (5 lb) incl. 1 battery
Operating temperature 0-45 ° C
