• Cost-effective solution with essential features — benefits from all the major features of X/LINK at a lower price point. No compromises on reliability.
• Adapted to any infrastructure — works in legacy analog or AES/EBU audio environments as well as full-IP audio infrastructures (AES67, Ravenna, Livewire). A good investment for migration to IP audio.
• Multiple levels of redundancy — 2 internal redundant PSUs, 4 network ports with stream redundancy, audio failovers and audio hardware by-pass for full audio service continuity and failsafe operation.
• High processing power — low latency audio connections, multi-format encoding and multi-protocol streaming.
• 2 analog I/Os and 1 stereo AES3 I/O — 2 balanced analog audio I/Os (24 bit converters, +24 dBu max), 1 stereo AES3 I/O with hardware sample rate converters, 2 AES67 / Ravenna / Livewire I/O channels.
• 4 network ports for full separation of IP traffics — AES67/Ravenna/Livewire (LAN), redundant dual streaming (WAN) and remote management (LAN/WAN).
• Allows for 1 stereo or 2 mono full-duplex remotes — EBU/ACIP compliance for interoperability with third-party codecs and any SIP infrastructure.
• SDHC card reader — for backup playlists and loading/saving the codec configuration.
• Easy and fast status monitoring — status LEDs, VU-meters, headphones.
• Control and configuration via SNMP and Web services — for easy integration with codec and network management/monitoring systems.
• Switchable hardware by-pass — of audio inputs to outputs in case of power supply failure.
• Fluid IP technology — reliable and resilient audio transmission over all types of IP networks including inexpensive unmanaged IP networks.

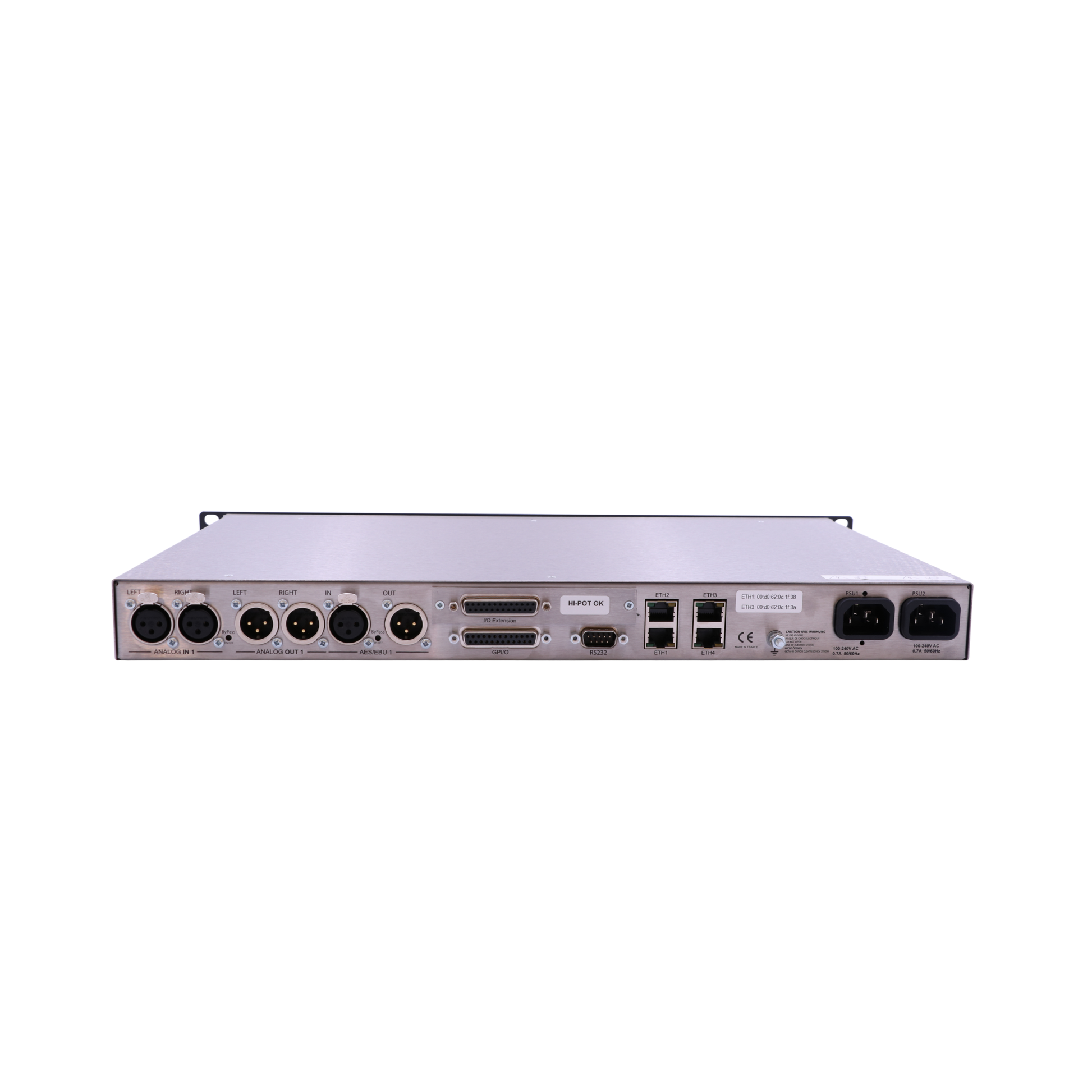

I/Os & Power	Value
Format	1U rack
Analog I/Os	2× balanced analog audio I/Os — 24 bit converters, +24 dBu max
AES3 I/O	1× stereo AES3 I/O with hardware sample rate converters
AoIP I/O	2× AES67 or Ravenna or Livewire I/O channels
Analog gain	Adjustable in steps of 0.5 dB
Digital gain	Adjustable in steps of 0.1 dB
Ethernet ports	4× — 1×100Mbps + 3×1Gbps on RJ-45
RS232	1× port for serial data tunneling
GPI / GPO	8× GPI / 8× GPO on Sub-D25 connector
Power supply	2× internal redundant PSUs — 100-250VAC (Max 15W)

Encoding, decoding & streaming	Value
Audio encoding formats	PCM linear 16/20/24 bits, ISO MPEG-1/2 Layer II and III, MPEG-4 AAC-LC, AAC-LD, HE-AACv1, HE-AACv2, AAC-ELD, Opus
Streaming protocols	RTP/UDP with or without MPEG-TS encapsulation, Icecast/Shoutcast, HLS multi-bitrate
Redundant streaming	Dual port — spatial and time diversity up to 3 seconds
FEC	Selectable FECs for ACIP/RTP (+10% to +100% IP bandwidth) — Pro-MPEG CoP #3 for MPEG-TS (SPTS, MPTS)
Fluid IP	Adaptive and resilient audio streaming
Network protocols	DHCP, IGMPv2 & v3, VLAN tagging, QoS (DSCP)
Multicast	Unicast, multicast, multi-unicast, multi-multicast
Synchronization	PTP (AES67/Ravenna), NTP
Management	SNMP, HTTPS, WEB Service API

Remote broadcasting	Value
Remotes	2× mono full-duplex or 1× stereo full-duplex
SIP	Registered SIP, unregistered SIP (Direct SIP), Symmetric RTP
Interoperability	EBU/ACIP compliant codecs and any SIP infrastructure
Call management	Address book, audio profile list, auto-redial, manual or automatic call answering
SIP servers	Registration to main and backup SIP servers
Redundant streaming	Dual streaming between Digigram codecs

• STL & SSL link — delivering a stereo or two mono sources over IP networks.
• DVB audio — program distribution over IP.
• WEB radio — multi-format encoding and multi-protocol streaming.
• Full-duplex live remote broadcasts — 2 mono remotes or 1 stereo remote with EBU/ACIP interoperability.
• Legacy analog or AES/EBU environments — compatible with existing analog infrastructure while ready for full-IP migration.
• Full-IP audio infrastructures — AES67, Ravenna, Livewire.

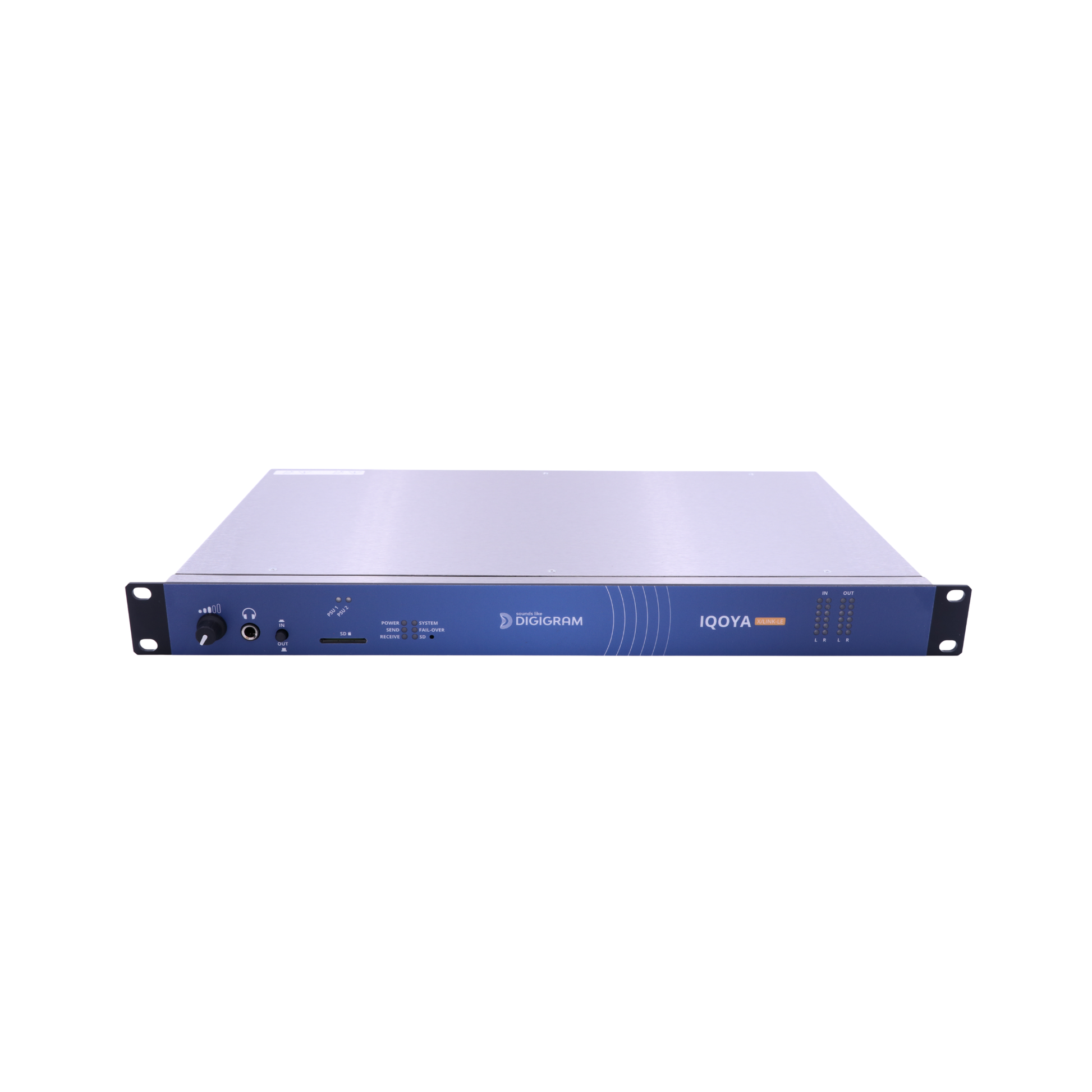

What is the Digigram IQOYA X/LINK-LE?

A 1U rack streamlined IP audio codec designed for live remote broadcasting and program distribution over IP. It delivers a stereo source or two mono sources over IP networks for STL & SSL link, DVB audio, WEB radio and full-duplex live remote broadcasts. Based on Fluid IP and designed for 24/7/365 use.

What is the difference between IQOYA X/LINK and IQOYA X/LINK-LE?

The IQOYA X/LINK-LE benefits from all the major features of X/LINK but comes at a lower price point — a cost-effective solution with essential features and no compromises on reliability.

What audio I/Os does the IQOYA X/LINK-LE have?

2 balanced analog audio I/Os (24 bit converters, +24 dBu max), 1 stereo AES3 I/O with hardware sample rate converters, and 2 AES67/Ravenna/Livewire I/O channels.

How many network ports does the IQOYA X/LINK-LE have?

4 Ethernet ports (1×100Mbps + 3×1Gbps) for full separation of IP traffics — AES67/Ravenna/Livewire (LAN), redundant dual streaming (WAN) and remote management (LAN/WAN).

What redundancy does the IQOYA X/LINK-LE offer?

Multiple levels: 2 internal redundant PSUs, 4 network ports with stream redundancy, audio failovers and hardware by-pass of audio inputs to outputs in case of power supply failure.

Does the IQOYA X/LINK-LE support AES67?

Yes — 2 AES67, Ravenna or Livewire I/O channels are available, with PTP synchronization (AES67/Ravenna) and mDNS for streams discovery.

What is Fluid IP?

Fluid IP is the Digigram technology for reliable and resilient audio transmission over all types of IP networks including inexpensive unmanaged IP networks. It enables adaptive and resilient audio streaming.
